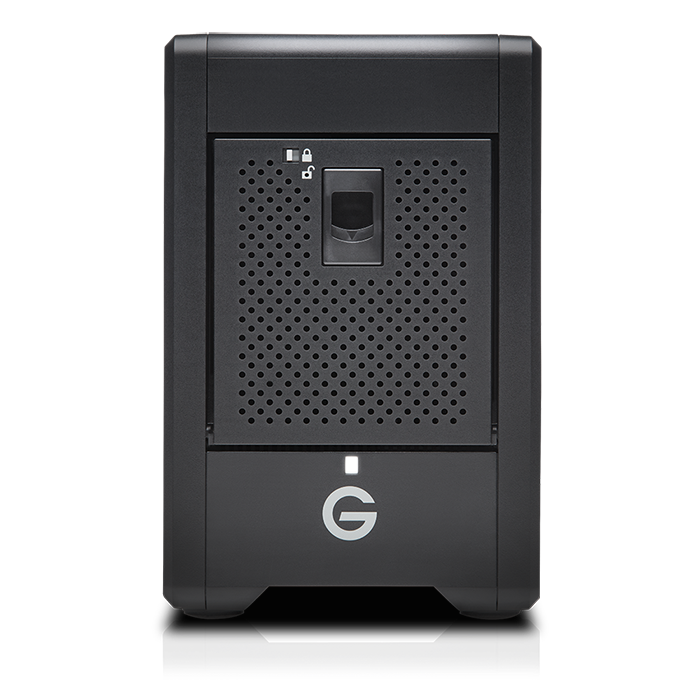

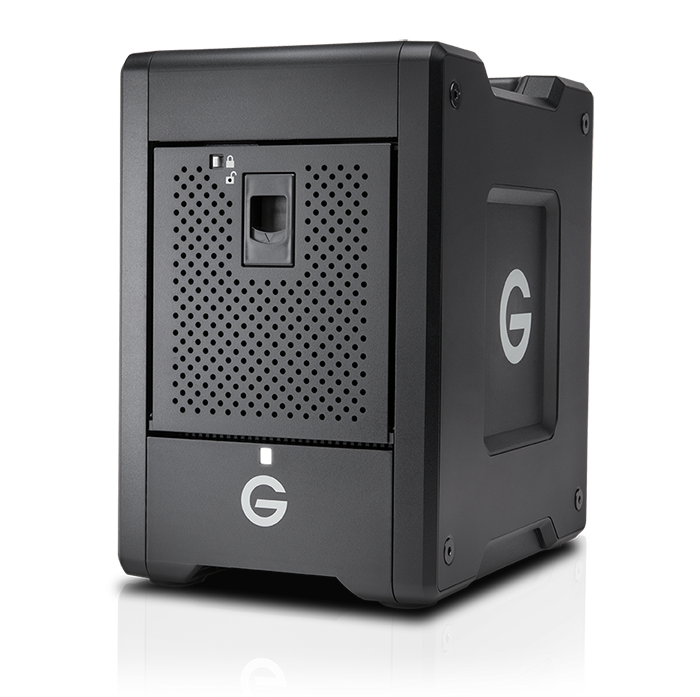

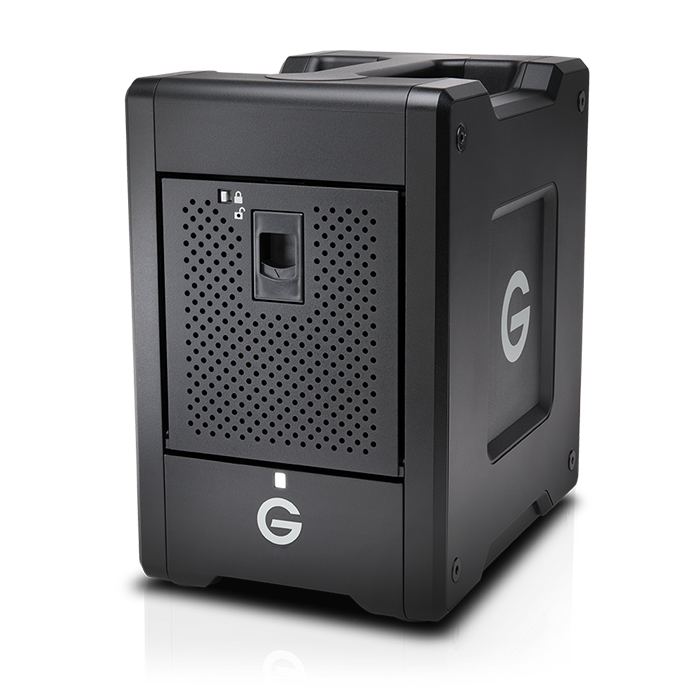

WD G-Technology G-SPEED Shuttle with ev Series Bay Adapters
Storage That Adapts to Your Productions
G-SPEED Shuttle Thunderbolt 3 - 16TB - w/ev Series Bay Black
#0G10136
- Capacity: 16TB
- Transfer Rate: Up to 1000MB/s (RAID 0)
- Color: Black
- Drive Speed: 7200 RPM
- Interface: (2) Thunderbolt 3 ports
G-SPEED Shuttle Thunderbolt 3 with ev Series Bay Adapters - 20TB
#0G10141
- Capacity: 20TB
- Transfer Rate: Up to 500MB/s
- Color: Black
- Drive Speed: 7200 RPM
- Interface: (2) Thunderbolt 3 ports
G-SPEED Shuttle Thunderbolt 3 with ev Series Bay Adapters - 24TB
#0G10146
- Capacity: 24TB
- Transfer Rate: Up to 500MB/s
- Color: Black
- Drive Speed: 7200 RPM
- Interface: (2) Thunderbolt 3 ports
Overview:
Transportable, 4-bay RAID storage with ev Series Bay Adapters optimized for 4K and 8K workflows to edit multi camera footage in real time, render multi-layer effects, and quickly export with incredible efficiency.
The G-SPEED Shuttle with ev Series Bay Adapters device offers up to 24TB1 of transportable storage you can easily carry to an on-site location and back to the studio. Optimized 4K and 8K support lets you edit footage in real-time, render multilayer effects, and quickly export a cut, while built-in hardware RAID offers several ways to help protect your files. Transfer rates up to 500MB/s2 let you quickly ingest content or natively edit footage, and with two ev Series bays, you get a flexible way to quickly ingest and offload media from a wide range of ev Series drives and readers. Combined with two removable Enterprise-class hard drives and a trusted 5-year limited warranty, you get reliable, high-performance storage to scale with all your productions.
Key Feature
- Up to 24TB1 of capacity for demanding production workflows
- A transportable design for easy travel from studio to location and back
- Optimized to support multi-stream 4K and 8K workflows
- Built-in hardware RAID controller (supports RAID 0, 1 or JBOD)
- Sustained transfer rates up to 500MB/s2
- Two ev Series Bay Adapters to work with ev Series devices
- Dual Thunderbolt 3 ports for easy daisy-chaining (backwards compatible with Thunderbolt 2)3
- Removable, reliable Enterprise-class 7200RPM Drives
- 5-Year limited warranty
1 As used for storage capacity, one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment.
2 Based on read speed. As used for transfer rate, megabyte per second (MB/s) = one million bytes per second. Performance will vary depending on your hardware and software components and configurations.
3 Backward compatible with Thunderbolt 2 using a compatible Thunderbolt 3 to Thunderbolt 2 adapter
Features:
Ideal Capacity For Demanding Production Workflows
Available in capacities up to 24TB, the G-SPEED Shuttle with ev Series Bay Adapters device delivers powerful, flexible storage to save your production’s 4K or 8K high dynamic range (HDR) and high frame rate (HFR) footage to a single location.

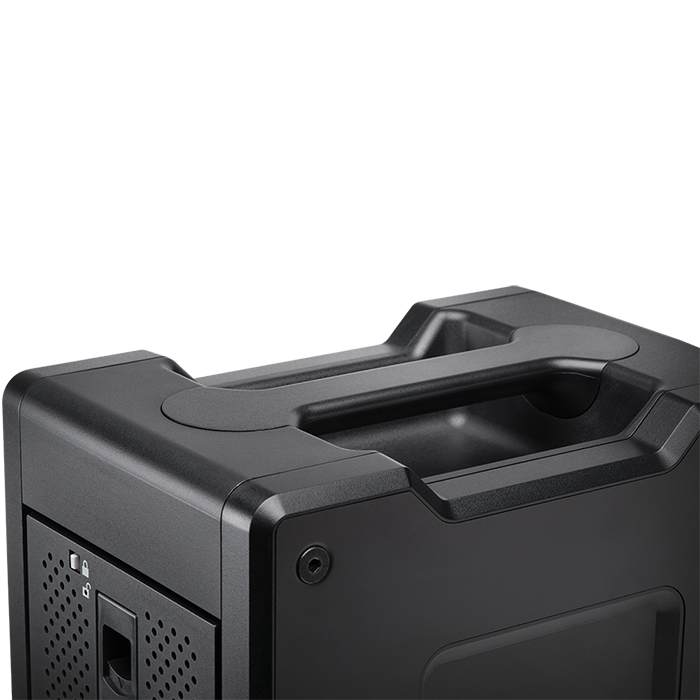

Transportable Design
Designed to easily travel between your on-site production location and to the studio for post-production, the G-SPEED Shuttle with ev Series Bay Adapters device delivers powerful, transportable storage to help improve your workflow efficiency, wherever you are.
Optimized Support For Multi-Stream Workflows
Built for multi-stream 4K and 8K production workflows, the G-SPEED Shuttle with ev Series Bay Adapters device offers the bandwidth to edit multi-camera footage in real time, render multi-layer effects, and quickly export in an efficient workflow.

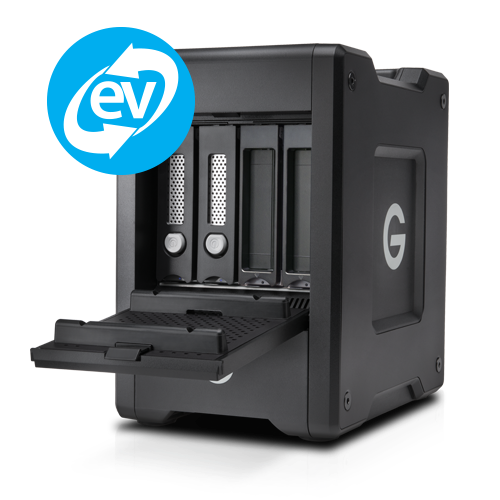

Two ev Series Bay Adapters
The ev Series Bay Adapters offer a convenient way to quickly offload and save content from a wide range of ev Series drives and readers. Simply plug in an ev Series-compatible device to automatically offload or back up media and minimize your workflows to only the essential steps.
Built-In Hardware RAID
For maximum performance, the G-SPEED Shuttle with ev Series Bay Adapters device comes in RAID 0 out of the box and supports RAID 0, 1, and JBOD to provide a versatile and flexible storage solution.
Up To 500MB/s Sustained Transfer Rates
With transfer rates up to 500MB/s, the G-SPEED Shuttle with ev Series Bay Adapters device delivers the performance you need to quickly ingest content and natively edit footage to make changes in real-time.

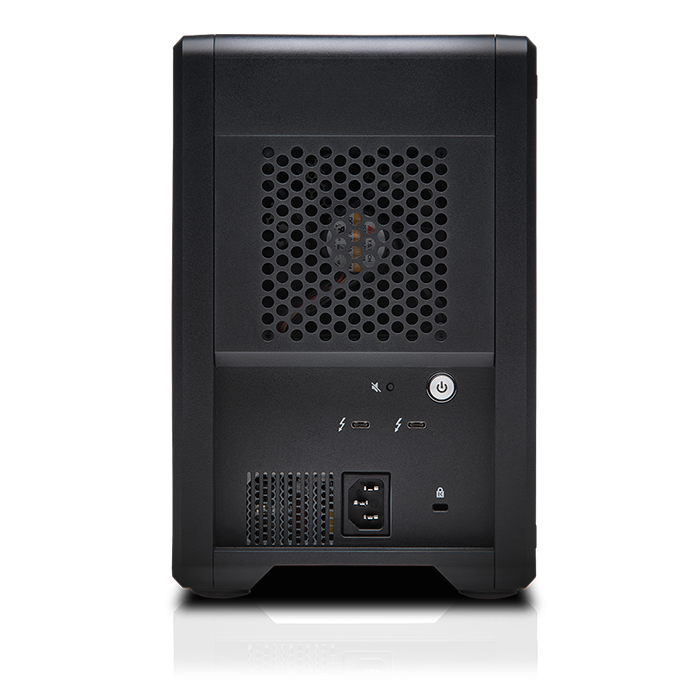

Daisy-Chaining For Up To 5 Additional Devices
With dual Thunderbolt 3 ports, you can conveniently daisy-chain up to 5 additional devices, keeping you connected to multiple drives, 4K displays and more, through a single connection to your computer.

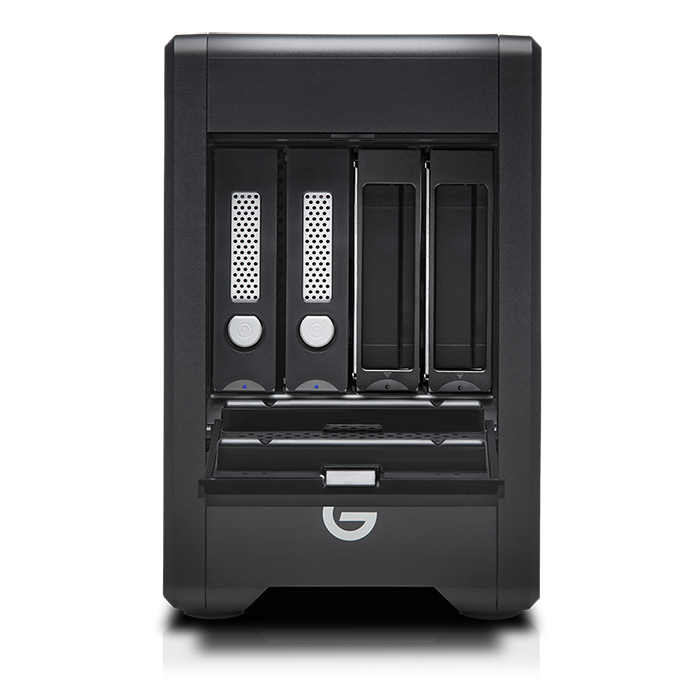

Removable, Enterprise-Class Storage
For all your demanding workloads and mission-critical footage, you can depend on the power and enhanced reliability of two (2) removable Enterprise-class 7200RPM hard drives inside.
5-Year Limited Warranty
Backed by a 5-year limited warranty, you can be confident in the reliable storage of the G-SPEED Shuttle with ev Series Bay Adapters for years to come.
Specifications:
| G-SPEED Shuttle with ev Series Bay Adapters Specifications | |
|---|---|
| Interface | (2x) Thunderbolt 3 Ports |
| Drive | (2x) 7200 RPM Enterprise-class hard drives |
| Data Transfer Rate | Up to 500MB/s (RAID 0) |
| RAID | Hardware RAID (supports RAID 0, 1 or JBOD) |
| Size (LxWxH) | 9.75" x 6.85' x 10.5" / 247.6 x 174.0 x 266.7 mm |
| Weight | 14 lbs / 6.50 kg |
| System Requirements | macOS 10.12+ Windows 10, Windows 7 (via reformat) |
| Box Contents | G-SPEED Shuttle 4-Bay Storage System (2) Removable disk modules and (2) ev Series Bay Adapters Thunderbolt cable (40 Gbps) Power cord Quick Start Guide 5-Year limited warranty |
| Retail Packaging (LxWxH) | 13.63” x 11.63” x 13.63” / 346 x 295 x 346 mm |
Compare:
| Product | Thunderbolt | USB-C | USB | FireWire | eSATA | mini-SAS | RAID Enabled | ev Series | Enterprise-class1 HDD |
|---|---|---|---|---|---|---|---|---|---|
| G-SPEED Shuttle with Thunderbolt 3 | |||||||||
| G-SPEED Shuttle XL with Thunderbolt 3 | |||||||||
| G-SPEED Shuttle XL with Thunderbolt | |||||||||
| G-SPEED Shuttle with ev Series Bay Adapters (Thunderbolt 3) | |||||||||
| G-SPEED Shuttle XL with ev Series Bay Adapters (Thunderbolt 3) | |||||||||
| G-SPEED Shuttle XL with ev Series Bay Adapters | |||||||||
| G-RAID with Thunderbolt 3 | |||||||||
| G-RAID with Thunderbolt | |||||||||
| G-RAID with Removable Drives | |||||||||
| G-RAID USB with Removable Drives | |||||||||
| G-DRIVE with Thunderbolt 3 | |||||||||
| G-DRIVE USB-C | |||||||||
| G-DRIVE with Thunderbolt | |||||||||
| G-DRIVE USB |
1 Used in extreme “enterprise” environments such as multiuser computer systems, server applications, and tiered storage arrays.
Views:
Video:
Documentation:
Download the WD G-Technology G-SPEED Shuttle with ev Series Bay Adapters Datasheet (.PDF)
