WD G-Technology G-SPEED Shuttle XL with ev Series Bay Adapters
Transportable, Hardware RAID, 8 Bay Thunderbolt 2 Storage Solution
G-SPEED Shuttle XL Thunderbolt 2 with ev Series Bay Adapters - 18TB
#0G04702
- Capacity: 18TB
- Transfer Rate: Up to 1300MB/s
- Color: Black
- Drive Speed: 7200 RPM
- Interface: (2) Thunderbolt 2
G-SPEED Shuttle XL Thunderbolt 2 with ev Series Bay Adapters - 24TB
#0G04706
- Capacity: 24TB
- Transfer Rate: Up to 1300MB/s
- Color: Black
- Drive Speed: 7200 RPM
- Interface: (2) Thunderbolt 2
G-SPEED Shuttle XL Thunderbolt 2 with ev Series Bay Adapters - 36TB
#0G04710
- Capacity: 36TB
- Transfer Rate: Up to 1300MB/s
- Color: Black
- Drive Speed: 7200 RPM
- Interface: (2) Thunderbolt 2
G-SPEED Shuttle XL Thunderbolt 2 with ev Series Bay Adapters - 48TB
#0G04714
- Capacity: 48TB
- Transfer Rate: Up to 1300MB/s
- Color: Black
- Drive Speed: 7200 RPM
- Interface: (2) Thunderbolt 2
Overview:
A transportable, Evolution Series-compatible hardware RAID solution with Thunderbolt 2 technology for colossal capacity that’s ready for action on location or back in the studio.
A transportable, hardware RAID, 8-Bay Thunderbolt 2 solution offering content creators colossal capacity and high definition performance. Designed to support multi-stream 4K workflows and beyond, the G-SPEED Shuttle XL can be configured in RAID 0, 1, 5, 6 & 10, features transfer rates up to 1300MB/s, Enterprise-class hard drives and the trusted WD G-Technology 3-Year warranty.
Leverage the flexibility of the Evolution Series with 2 ev Series bay adapters which allows use of the G-DRIVE ev, available in various capacities and performance including SSD. It is the ultimate storage solution for demanding video workflows both on location and in the studio.
Key Feature
- Transportable design

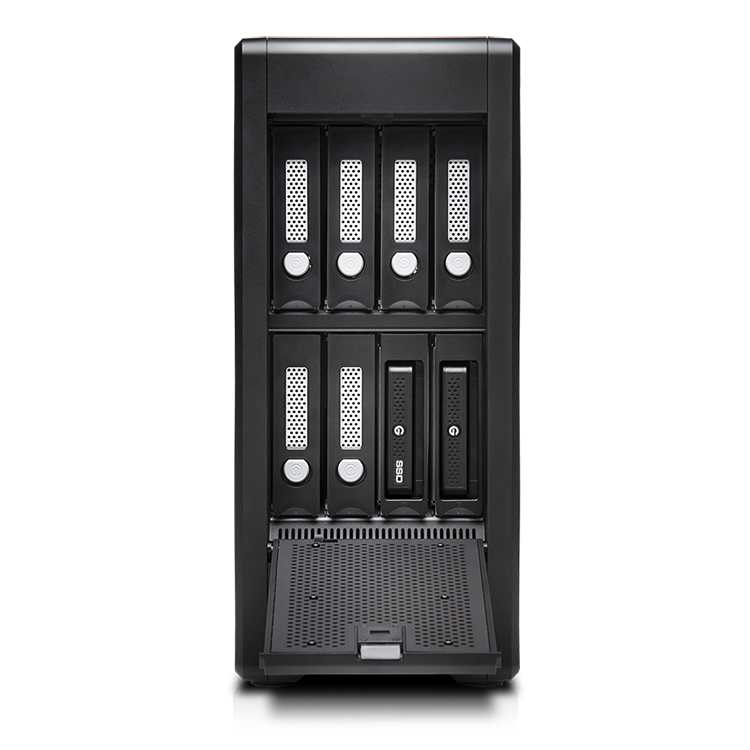

- Flexible 8-Bays – Configurable with two optional ev Series Bay Adapters
- Enterprise-class hard drives
- Up to 1300MB/sec sustained transfer rates
- Ships in RAID 5, user configurable
- Dual Thunderbolt 2 ports
- 3-Year limited warranty
- Optional protective case
Features:
Up To 1300MB/s Sustained Transfer Rates
With transfer rates up to 1300MB/s, the G-SPEED Shuttle XL with ev Series Bay Adapters device delivers the performance you need to quickly ingest content and natively edit footage to make changes in real-time.
Transportable Design
Built for easy travel between your on-site production location and to the studio for post-production, the G-SPEED Shuttle XL with ev Series Bay Adapters device delivers powerful, transportable storage to help improve your workflow efficiency, wherever you are.
Optimized Support For Multi-Stream Workflows
Built for multi-stream 4K production workflows, the G-SPEED Shuttle XL with ev Series Bay Adapters device offers the bandwidth to support multi camera editing in real time, render footage with multi-layer effects, and quickly export in an efficient workflow.
Two ev Series Bay Adapters
The ev Series Bay Adapters offer a convenient way to quickly offload and save content from a wide range of ev Series drives and readers. Simply plug in an ev Series-compatible device to automatically offload or back up media and minimize your workflows to only the essential steps.
Built-In Hardware RAID
For maximum performance, the G-SPEED Shuttle XL with ev Series Bay Adapters device comes in RAID 5 out of the box and supports RAID 0, 1, 5, 6 and 10 to provide a versatile and flexible storage solution.

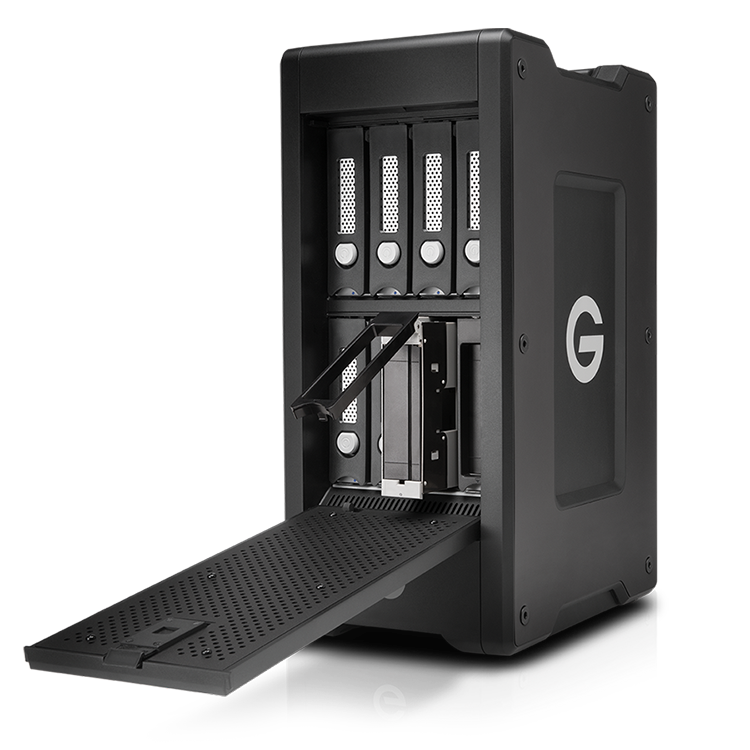

Removable, Enterprise-Class Storage
For all your demanding workloads and mission-critical footage, you can depend on the power and enhanced reliability of six (6) removable Enterprise-class 7200RPM hard drives inside.
3-Year Limited Warranty
G-SPEED Shuttle XL with ev Series Bay Adapters is backed by a standard 3-Year limited warranty and unlimited free technical support by representatives experienced with the latest content creation applications.
Specifications:
| G-SPEED Shuttle XL with ev Series Bay Adapters Specifications | |
|---|---|
| Interface | (2x) Thunderbolt 3 Ports |
| Drive | (6) Removable disk modules and (2) ev Series Bay Adapters: Pre-configured in RAID 5, user configurable in RAID 0,1,5,6 & 101 |
| Data Transfer Rate | Up to 1300MB/s |
| RAID | Pre-configured in RAID 5, user configurable in RAID 0,1, 5, 6 & 10 |

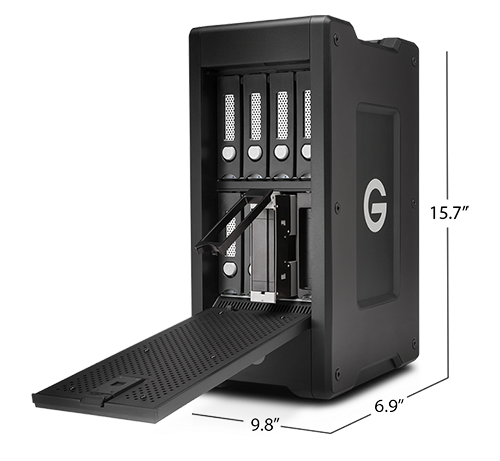

| Size (LxWxH) | 9.8” x 6.9” x 15.7” |
| Weight | 25.11 lbs |
| System Requirements | macOS 10.9+ Windows 10, 8.1, 7 (via reformat) |
| Box Contents | G-SPEED Shuttle XL 8-Bay Storage System (6) Removable disk modules and (2) ev Series Bay Adapters (1) Thunderbolt cable Power cord Quick Start Guide 3-Year limited warranty |
| Retail Packaging (LxWxH) | 11.65” x 13.86” x 18.58” |
1 ev Series Bay Adapters configurable in RAID 0, 1 and JBOD only.
Compare:
| Product | Thunderbolt | USB-C | USB | FireWire | eSATA | mini-SAS | RAID Enabled | ev Series | Enterprise-class1 HDD |
|---|---|---|---|---|---|---|---|---|---|
| G-SPEED Shuttle with Thunderbolt 3 | |||||||||
| G-SPEED Shuttle XL with Thunderbolt 3 | |||||||||
| G-SPEED Shuttle XL with Thunderbolt | |||||||||
| G-SPEED Shuttle with ev Series Bay Adapters (Thunderbolt 3) | |||||||||
| G-SPEED Shuttle XL with ev Series Bay Adapters (Thunderbolt 3) | |||||||||
| G-SPEED Shuttle XL with ev Series Bay Adapters | |||||||||
| G-RAID with Thunderbolt 3 | |||||||||
| G-RAID with Thunderbolt | |||||||||
| G-RAID with Removable Drives | |||||||||
| G-RAID USB with Removable Drives | |||||||||
| G-DRIVE with Thunderbolt 3 | |||||||||
| G-DRIVE USB-C | |||||||||
| G-DRIVE with Thunderbolt | |||||||||
| G-DRIVE USB |
1 Used in extreme “enterprise” environments such as multiuser computer systems, server applications, and tiered storage arrays.
Views:
Video:
Documentation:
Download the WD G-Technology G-SPEED Shuttle XL with ev Series Bay Adapters Datasheet (.PDF)
