WD G-Technology G-SPEED Shuttle XL Thunderbolt 3 with ev Series Bay Adapters
Transportable, Hardware RAID, 8-Bay Thunderbolt 3 Storage Solution
G-SPEED Shuttle XL Thunderbolt 3 with ev Series Bay Adapters - 24TB
#0G05937
- Capacity: 24TB
- Transfer Rate: Up to 1500MB/s
- Color: Black
- Drive Speed: 7200 RPM
- Interface: (2) Thunderbolt 3 ports
G-SPEED Shuttle XL Thunderbolt 3 with ev Series Bay Adapters - 36TB
#0G05942
- Capacity: 36TB
- Transfer Rate: Up to 1500MB/s
- Color: Black
- Drive Speed: 7200 RPM
- Interface: (2) Thunderbolt 3 ports
G-SPEED Shuttle XL Thunderbolt 3 with ev Series Bay Adapters - 48TB
#0G05947
- Capacity: 48TB
- Transfer Rate: Up to 1500MB/s
- Color: Black
- Drive Speed: 7200 RPM
- Interface: (2) Thunderbolt 3 ports
G-SPEED Shuttle XL Thunderbolt 3 with ev Series Bay Adapters - 60TB
#0G05952
- Capacity: 60TB
- Transfer Rate: Up to 1500MB/s
- Color: Black
- Drive Speed: 7200 RPM
- Interface: (2) Thunderbolt 3 ports
G-SPEED Shuttle XL Thunderbolt 3 with ev Series Bay Adapters - 72TB
#0G05957
- Capacity: 72TB
- Transfer Rate: Up to 1500MB/s
- Color: Black
- Drive Speed: 7200 RPM
- Interface: (2) Thunderbolt 3 ports
Overview:
A transportable, Evolution Series-compatible 8-bay RAID solution with Thunderbolt 3 technology offering colossal capacity and high-powered performance for multi-stream 4K, 8K and VR workflows.
A transportable 8-bay hardware RAID solution with Thunderbolt 3 technology offering content creators colossal capacity and high-powered performance. Supports multi-stream 4K, 8K and VR workflows, RAID 0, 1, 5, 6 and 10 configurations1, and provides transfer rates up to 1500MB/s2. Designed with two (2) ev Series bay adapters for use with ev Series drive modules and ev Series readers. Along with Enterprise-class hard drives for enhanced reliability and a trusted 5-year limited warranty, the G-SPEED Shuttle XL with ev Series Bay Adapters is the ultimate storage solution for demanding video workflows on location and in the studio.
Key Feature
- Colossal capacity and transportable design
- Supports multi-stream 4K, 8K and VR workflows
- Hardware RAID: Supports RAID 0, 1, 5, 6, 10
- Up to 1500MB/s sustained transfer rates
- Flexible 8-bays - Configured with two ev Series bay adapters
- Dual Thunderbolt 3 ports (backwards compatible with Thunderbolt 2)3
- Removable, reliable Enterprise-class 7200RPM drives
- 5-Year limited warranty
1 ev Series Bay Adapters configurable in RAID 0, 1 and JBOD only.
2 As used for transfer rate, megabyte per second (MB/s) = one million bytes per second.
3 Compatible with Thunderbolt 2 and Thunderbolt 1 connections, requires an optional adapter.
4 As used for interface rate, gigabit per second (Gb/s) = one billion bits per second.
Features:
Up To 1500MB/s Sustained Transfer Rates
With transfer rates up to 1500MB/s, the G-SPEED Shuttle XL Thunderbolt 3 with ev Series bay adapters device delivers the performance you need to quickly ingest content and natively edit footage to make changes in real-time.

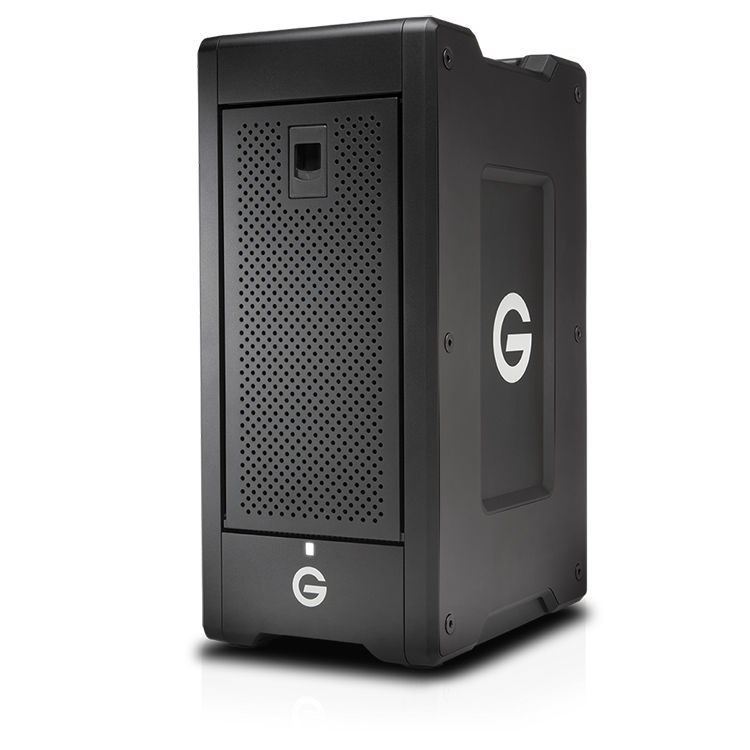

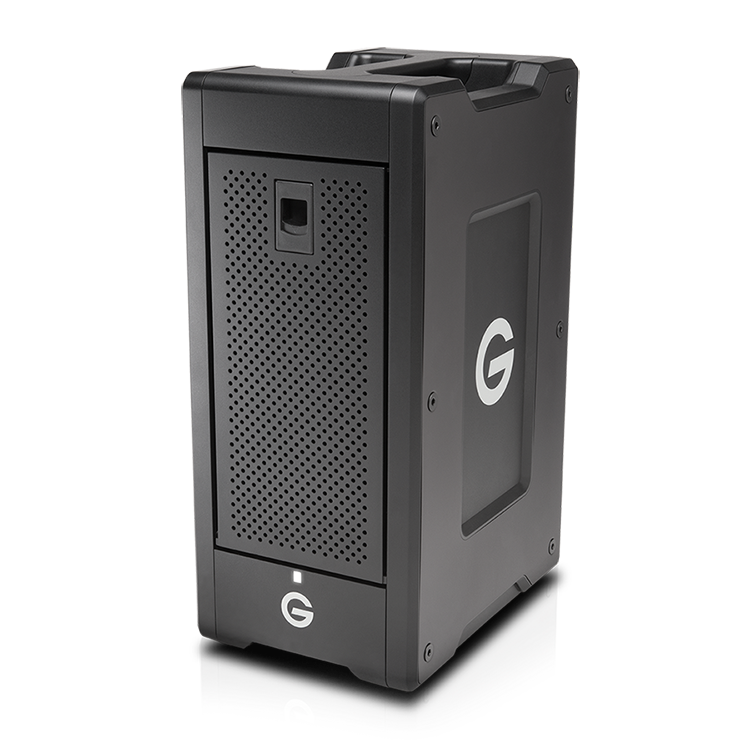

Transportable Design
Built for easy travel between your on-site production location and to the studio for post-production, the G-SPEED Shuttle XL Thunderbolt 3 with ev Series bay adapters device delivers powerful, transportable storage to help improve your workflow efficiency, wherever you are.
Optimized Support For Multi-Stream Workflows
Built for multi-stream 4K and 8K production workflows, the G-SPEED Shuttle XL Thunderbolt 3 with ev Series bay adapters device offers the bandwidth to support multi camera editing in real time, render footage with multi-layer effects, and quickly export in an efficient workflow.

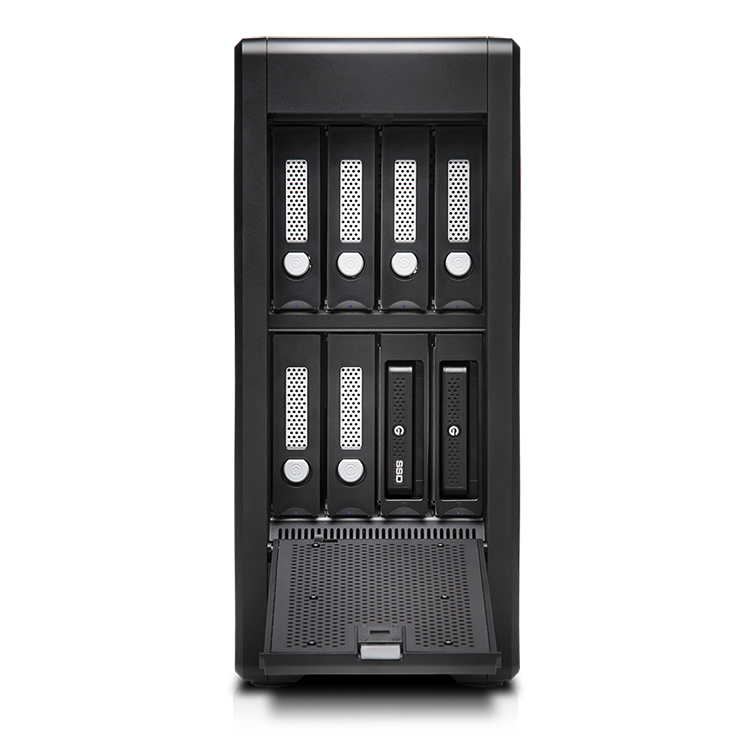

Two ev Series Bay Adapters
The ev Series Bay Adapters offer a convenient way to quickly offload and save content from a wide range of ev Series drives and readers. Simply plug in an ev Series-compatible device to automatically offload or back up media and minimize your workflows to only the essential steps.
Daisy-Chaining For Up To 5 Additional Devices

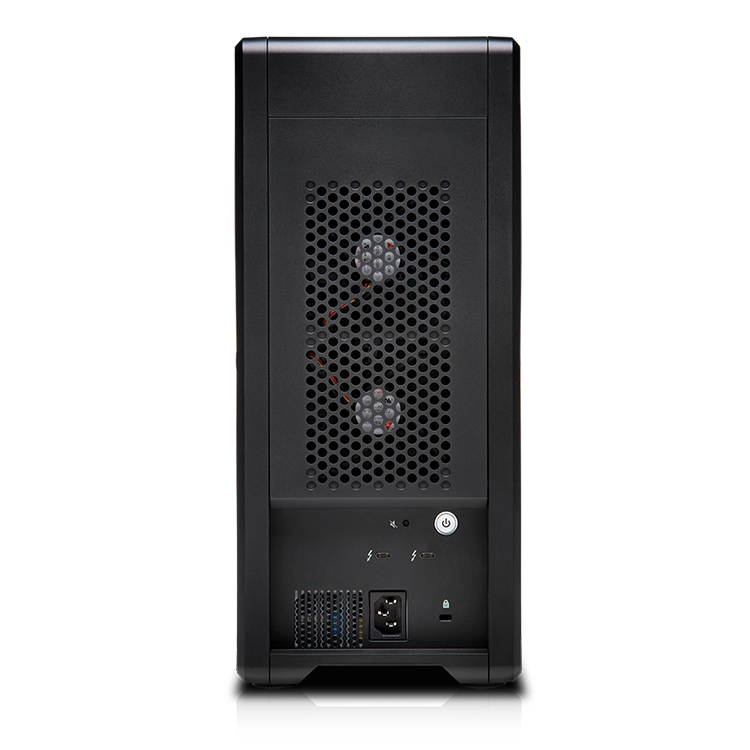

With dual Thunderbolt 3 ports, you can conveniently daisy chain up to 5 additional devices, keeping you connected to multiple drives, 4K displays and more, through a single connection to your computer.
Built-In Hardware RAID
For maximum performance, the G-SPEED Shuttle XL with ev Series bay adapters device comes in RAID 5 out of the box and supports RAID 0,1, 5, 6, 10 and 50 to provide a versatile and flexible storage solution.

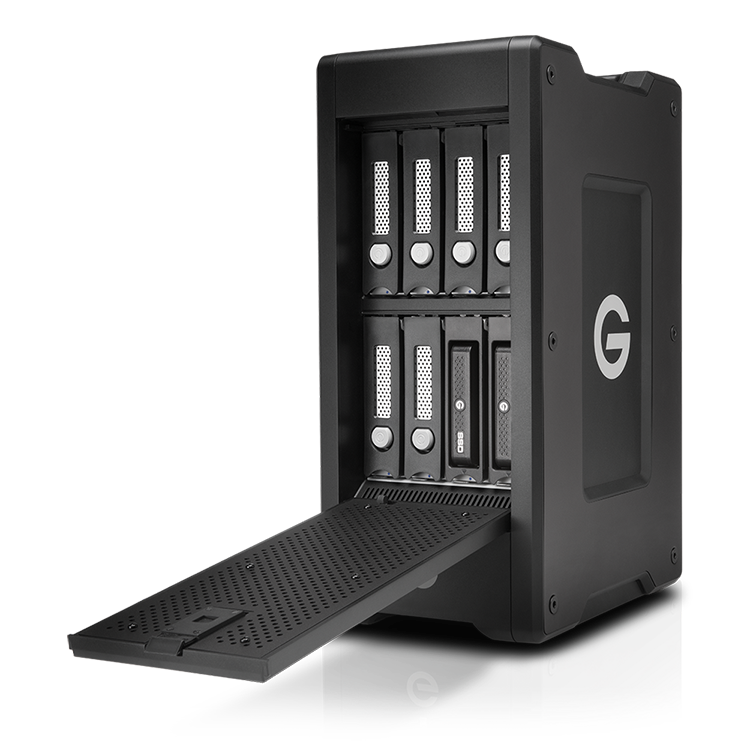

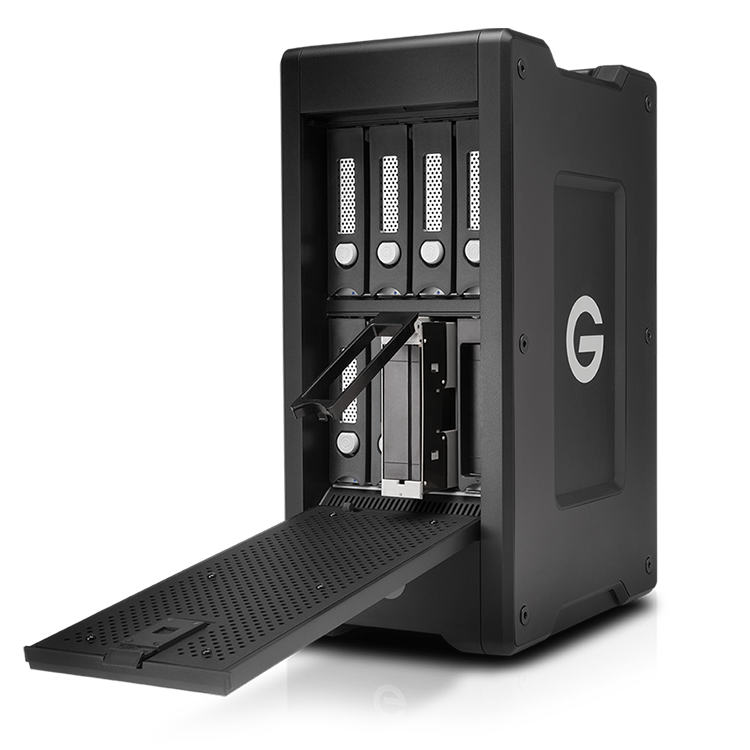

Removable, Enterprise-Class Storage
For all your demanding workloads and mission-critical footage, you can depend on the power and enhanced reliability of six (6) removable Enterprise-class 7200RPM hard drives inside.
5-Year Limited Warranty
G-SPEED Shuttle XL with ev Series bay adapters is backed by a standard 5-year limited warranty and unlimited free technical support by representatives experienced with the latest content creation applications.
Specifications:
| G-SPEED Shuttle XL Thunderbolt 3 with ev Series Bay Adapters Specifications | |
|---|---|
| Interface | (2x) Thunderbolt 3 Ports |
| Drive | (6x) 7200 RPM Enterprise-class hard drives |
| Data Transfer Rate | Up to 1500MB/s |
| RAID | Pre-configured in RAID 5, user configurable in RAID 0,1, 5, 6, 10 & 50 |

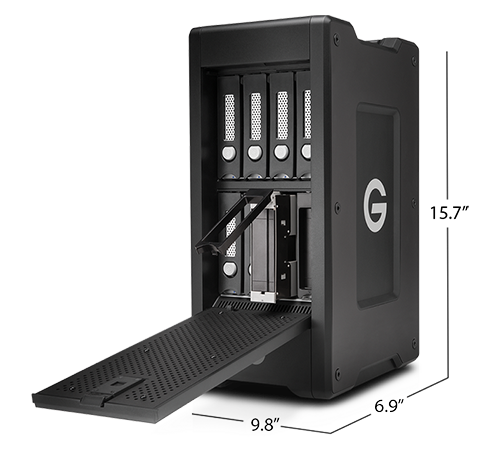

| Size (LxWxH) | 9.8” x 6.9” x 15.7” |
| Weight | 23.85 lbs |
| System Requirements | macOS 10.12+ Windows 10, Windows 7 (via reformat) |
| Box Contents | G-SPEED Shuttle XL 8-Bay Storage System (6) Removable disk modules and (2) ev Series Bay Adapters (1) Thunderbolt cable (40 Gbps) Power cord Quick Start Guide 5-Year limited warranty |
| Retail Packaging (LxWxH) | 11.65” x 13.86” x 18.58” |
Compare:
| Product | Thunderbolt | USB-C | USB | FireWire | eSATA | mini-SAS | RAID Enabled | ev Series | Enterprise-class1 HDD |
|---|---|---|---|---|---|---|---|---|---|
| G-SPEED Shuttle with Thunderbolt 3 | |||||||||
| G-SPEED Shuttle XL with Thunderbolt 3 | |||||||||
| G-SPEED Shuttle XL with Thunderbolt | |||||||||
| G-SPEED Shuttle with ev Series Bay Adapters (Thunderbolt 3) | |||||||||
| G-SPEED Shuttle XL with ev Series Bay Adapters (Thunderbolt 3) | |||||||||
| G-SPEED Shuttle XL with ev Series Bay Adapters | |||||||||
| G-RAID with Thunderbolt 3 | |||||||||
| G-RAID with Thunderbolt | |||||||||
| G-RAID with Removable Drives | |||||||||
| G-RAID USB with Removable Drives | |||||||||
| G-DRIVE with Thunderbolt 3 | |||||||||
| G-DRIVE USB-C | |||||||||
| G-DRIVE with Thunderbolt | |||||||||
| G-DRIVE USB |
1 Used in extreme “enterprise” environments such as multiuser computer systems, server applications, and tiered storage arrays.
Views:
Video:
Documentation:
Download the WD G-Technology G-SPEED Shuttle XL Thunderbolt 3 with ev Series Bay Adapters Datasheet (.PDF)
