WD G-Technology G-SPEED Shuttle with Thunderbolt 3
Transportable RAID Storage with Thunderbolt 3
G-SPEED Shuttle Thunderbolt 3
16TB
#0G10067
- Capacity: 16TB
- Transfer Rate: Up to 1000MB/s
- Color: Black
- Drive Speed: 7200 RPM
- Interface: (2) Thunderbolt 3 ports
G-SPEED Shuttle Thunderbolt 3
24TB
#0G10072
- Capacity: 24TB
- Transfer Rate: Up to 1000MB/s
- Color: Black
- Drive Speed: 7200 RPM
- Interface: (2) Thunderbolt 3 ports
G-SPEED Shuttle Thunderbolt 3
32TB
#0G10077
- Capacity: 32TB
- Transfer Rate: Up to 1000MB/s
- Color: Black
- Drive Speed: 7200 RPM
- Interface: (2) Thunderbolt 3 ports
G-SPEED Shuttle Thunderbolt 3
48TB
#0G10087
- Capacity: 48TB
- Transfer Rate: Up to 1000MB/s
- Color: Black
- Drive Speed: 7200 RPM
- Interface: (2) Thunderbolt 3 ports
G-SPEED Shuttle Thunderbolt 3
56TB - Black
#0G10401
- Capacity: 56TB
- Transfer Rate: Up to 1000MB/s
- Color: Black
- Drive Speed: 7200 RPM
- Interface: (2) Thunderbolt 3 ports
Overview:
Transportable, 4-bay RAID storage optimized for 4K and 8K workflows to edit multi camera footage in real time, render multi-layer effects, and quickly export with incredible efficiency.
With up to 48TB1 of capacity and transfer speeds up to 1000MB/s2, the G-SPEED Shuttle with Thunderbolt 3 device delivers ideal storage for demanding workflows. A transportable design lets you easily carry it on-location and back to the studio, and with optimized 4K and 8K support, you get the bandwidth to edit multi-camera footage in real time, render multi-layer effects, and quickly export with incredible efficiency. Built-in hardware RAID offers several backup options, while dual Thunderbolt 3 ports are ready for daisy chaining up to five additional devices. Combined with four bays of removable Enterprise-class hard drives for enhanced reliability and a trusted 5-year limited warranty, the G-SPEED Shuttle with Thunderbolt 3 device provides reliable, high-performance storage to scale with all your productions.
Key Feature
- Up to 48TB1 of capacity for demanding production workflows
- A transportable design for easy travel from studio to location and back
- Optimized to support multi-stream 4K and 8K workflows
- Built-in hardware RAID controller (supports RAID 0, 1, 5, 10)
- Sustained transfer rates up to 1000MB/s2 (read)
- Dual Thunderbolt 3 ports for easy daisy-chaining (backwardscompatible with Thunderbolt 2)3
- Removable, reliable Enterprise-class 7200RPM Drives
- 5-Year limited warranty
1 As used for storage capacity, one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment.
2 Based on read speed. As used for transfer rate, megabyte per second (MB/s) = one million bytes per second. Performance will vary depending on your hardware and software components and configurations.
3 Backward compatible with Thunderbolt 2 using a compatible Thunderbolt 3 to Thunderbolt 2 adapter
Features:
Up To 1000MB/s Sustained Transfer Rates
With transfer rates up to 1000MB/s, the G-SPEED Shuttle with Thunderbolt 3 device delivers the performance you need to quickly ingest content and natively edit footage to make changes in real-time.
Transportable Design
Built for easy travel between your on-site production location and to the studio for post-production, the G-SPEED Shuttle with Thunderbolt 3 device delivers powerful, transportable storage to help improve your workflow efficiency, wherever you are.
Optimized Support For Multi-Stream Workflows
Built for multi-stream 4K and 8K production workflows, the G-SPEED Shuttle with Thunderbolt 3 device offers the bandwidth to support multi camera editing in real time, render footage with multi-layer effects, and quickly export in an efficient workflow.
Daisy-Chaining For Up To 5 Additional Devices
With dual Thunderbolt 3 ports, you can conveniently daisy chain up to 5 additional devices, keeping you connected to multiple drives, 4K displays and more, through a single connection to your computer.
Built-In Hardware RAID
For maximum performance, the G-SPEED Shuttle with Thunderbolt 3 device comes in RAID 5 out of the box and supports RAID 0, 1, and 10 to provide a versatile and flexible storage solution.

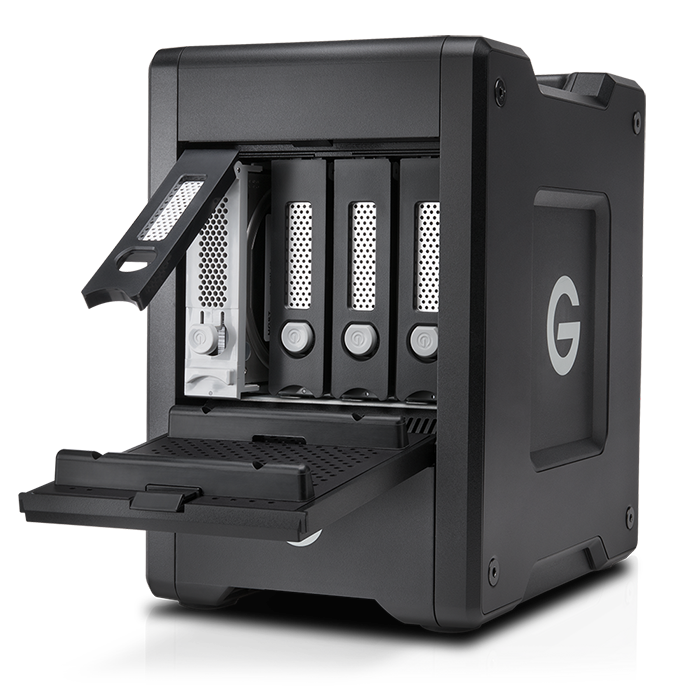

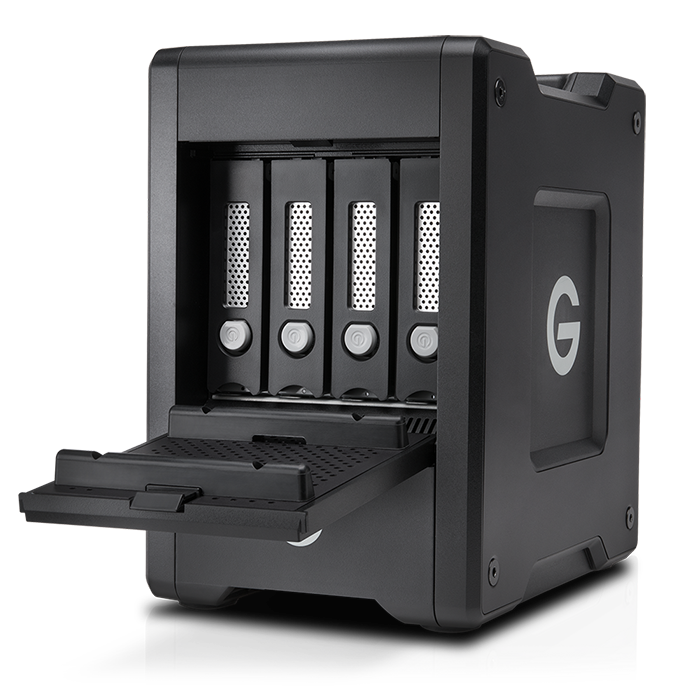

Removable, Enterprise-Class Storage
For all your demanding workloads and mission-critical footage, you can depend on the power and enhanced reliability of four (4) removable Enterprise-class 7200RPM hard drives inside.
5-Year Limited Warranty
Backed by a 5-year limited warranty, you can be confident in the reliable storage of the G-SPEED Shuttle with Thunderbolt 3 for years to come.
Specifications:
| G-SPEED Shuttle with Thunderbolt 3 Specifications | |
|---|---|
| Interface | (2x) Thunderbolt 3 Ports |
| Drive | (4x) 7200 RPM Enterprise-class hard drives |
| Data Transfer Rate | Up to 1000MB/s (RAID 0) |
| RAID | Built-in hardware RAID (supports RAID 0, 1, 5, 10) |
| Size (LxWxH) | 9.75” x 6.85’ x 10.5” / 247.6 x 174.0 x 266.7 mm |
| Weight | 16 lbs / 7.40 kg |
| System Requirements | macOS 10.12+ Windows 10, Windows 7 (via reformat) |
| Box Contents | G-SPEED Shuttle 4-Bay Storage System (4) Removable disk modules (1) Thunderbolt cable (40 Gbps) Power cord Quick Start Guide 5-Year limited warranty |
| Retail Packaging (LxWxH) | 13.63” x 11.63” x 13.63” / 346 x 295 x 346 mm |
Compare:
| Product | Thunderbolt | USB-C | USB | FireWire | eSATA | mini-SAS | RAID Enabled | ev Series | Enterprise-class1 HDD |
|---|---|---|---|---|---|---|---|---|---|
| G-SPEED Shuttle with Thunderbolt 3 | |||||||||
| G-SPEED Shuttle XL with Thunderbolt 3 | |||||||||
| G-SPEED Shuttle XL with Thunderbolt | |||||||||
| G-SPEED Shuttle with ev Series Bay Adapters (Thunderbolt 3) | |||||||||
| G-SPEED Shuttle XL with ev Series Bay Adapters (Thunderbolt 3) | |||||||||
| G-SPEED Shuttle XL with ev Series Bay Adapters | |||||||||
| G-RAID with Thunderbolt 3 | |||||||||
| G-RAID with Thunderbolt | |||||||||
| G-RAID with Removable Drives | |||||||||
| G-RAID USB with Removable Drives | |||||||||
| G-DRIVE with Thunderbolt 3 | |||||||||
| G-DRIVE USB-C | |||||||||
| G-DRIVE with Thunderbolt | |||||||||
| G-DRIVE USB |
1 Used in extreme “enterprise” environments such as multiuser computer systems, server applications, and tiered storage arrays.
Views:
Video:
Documentation:
Download the WD G-Technology G-SPEED Shuttle with Thunderbolt 3 Datasheet (.PDF)
